DesignForge: A Klopfenstein Taper from One Prompt

Overview:

At DesignForge AI, one prompt took a 50→90 Ω Klopfenstein taper on 0.254 mm FR4 from specification to a solved, verified Ansys HFSS model. Deterministic apps supply every number, and the orchestrator runs the toolchain. The orchestrator ran on Claude Sonnet 5.

How it works:

  • Impedance Width Calculator (deterministic app): target Z₀, εr and height in; trace width out.
  • Taper Transition Calculator (deterministic app): 50→90 Ω, ripple and length in; the width profile and the analytical S11 and S21 out.
  • Taper Builder (skill): builds and solves the taper in HFSS from the calculator widths.
  • /plot-s-parameters (skill): overlays the HFSS sweep on the analytical model.

Result: the HFSS S11 and S21 follow the analytical Klopfenstein response from 1 to 60 GHz. It took about 20 minutes end to end, simulation time included.

Taper design, end to end
From the prompt, through the deterministic calculators and skills, to the solved HFSS model and the comparison plot.
HFSS vs analytical S-parameters

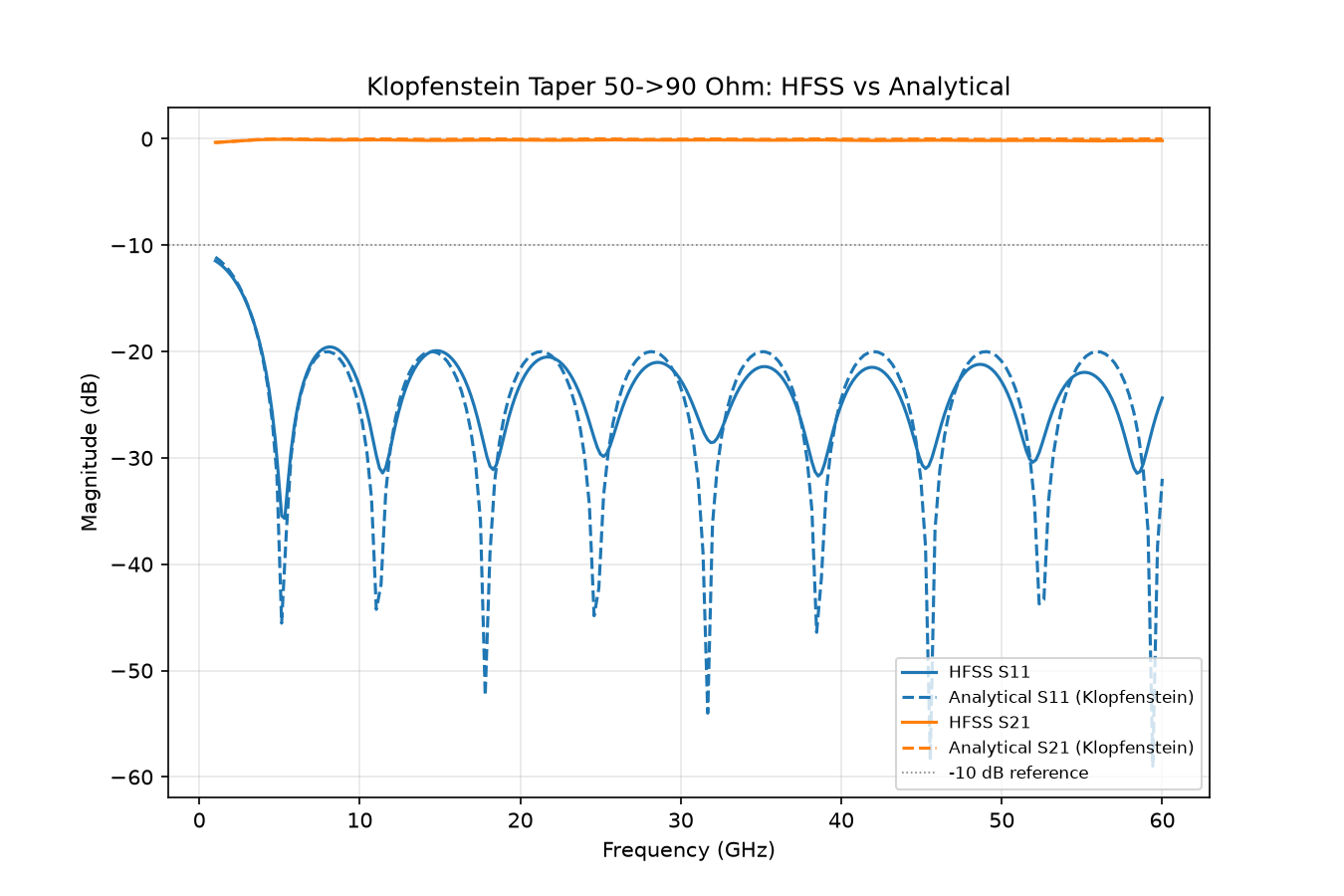

HFSS (solid) against the analytical model (dashed), S11 and S21 from 1 to 60 GHz.
The taper in HFSS

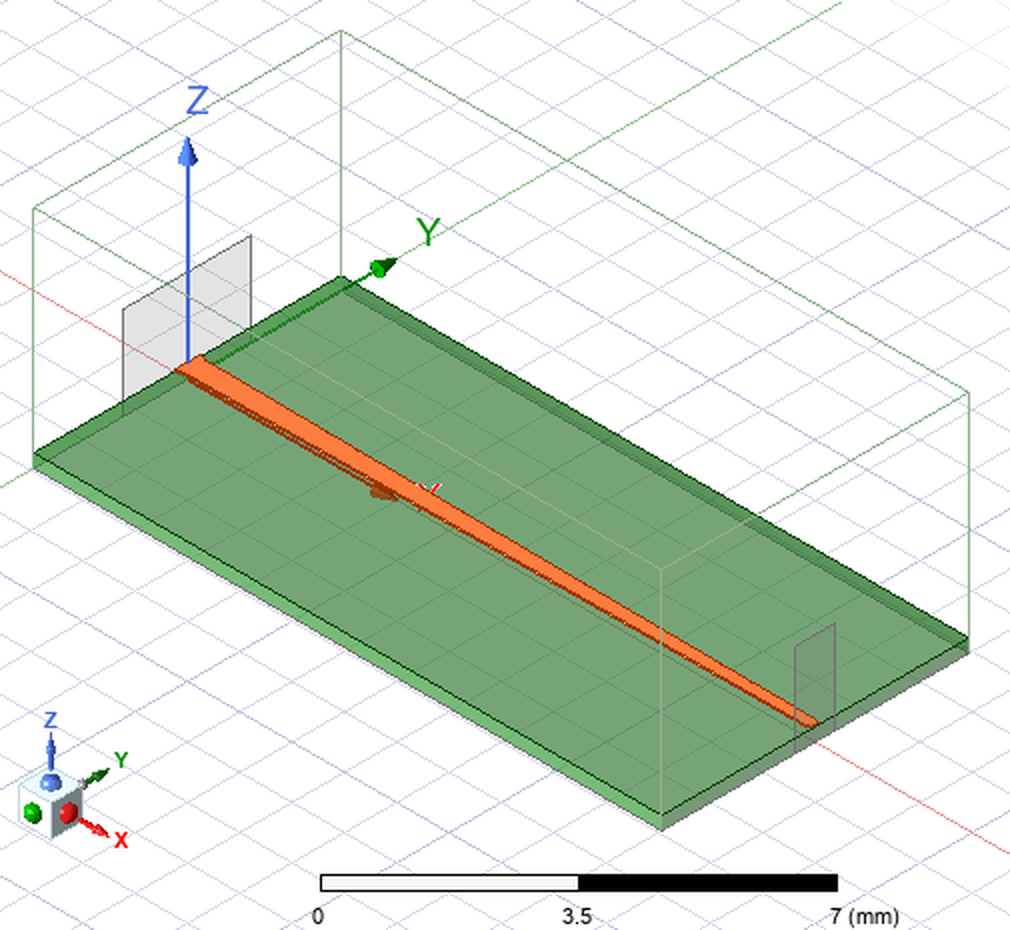

The complete taper, built and solved in HFSS.
